Core Concept
Definition: Orbitals are regions in 3D space around the nucleus of an atom where there is a high probability of finding an electron.
Key Characteristics:
Each orbital can hold a maximum of 2 electrons.
Orbitals are described by quantum numbers, which determine their size, shape, orientation, and energy.
Practice Tips
Orbitals are regions where electrons are likely to be found, described by quantum numbers - exist in three dimensional space
Probability regions - NOT fixed paths or orbits. Orbits ≠ Orbitals
Different types of orbitals (s, p, d, f) have unique shapes and capacities.
Electron configurations and orbital filling rules explain the chemical behavior of elements.
Topic Overview Podcast
Topic Related Resources

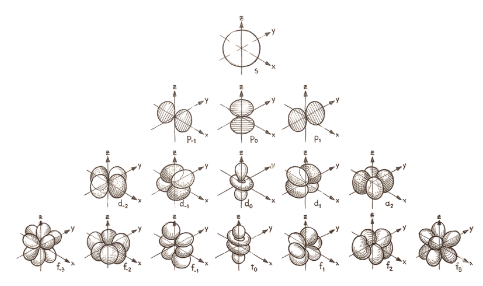

Types of Orbitals
s-Orbitals:
Shape: Spherical (like a ball)
Energy Levels: Found in every energy level (n ≥ 1).
Number sub-orbitals per energy level: 1
Electron capacity: 2 electrons maximum
Examples: 1s, 2s, 3s, 4s...
Visual: Think of spherical balloons of increasing size
p-Orbitals:
Shape: Dumbbell-shaped or figure 8
Energy Levels: First appears 2nd Energy level; found in energy levels n ≥ 2
Number sub-orbitals per energy level: 3 (px, py, pz)
Electron capacity: 6 electrons total (2 per orbital)
Orientation: Along x, y, and z axes
d-Orbitals:
Shape: Complex'; Cloverleaf-shaped or donut-dumbbell.
Energy Levels: First appears 3rd Energy level; found in energy levels n ≥ 3
Number per energy level: 5
Electron capacity: 10 electrons total (2 per orbital)
f-Orbitals:
Shape: Complex, multi-lobed
Energy Levels: First appears 3rd Energy level; found in energy levels n ≥ 3
Number per energy level: 7
Electron capacity: 14 electrons total (2 per orbital)
⚠️ Common Misconceptions
"Electrons orbit like planets"
Truth: Electrons exist in probability clouds, not fixed paths
Key: Think clouds, not orbits
"Orbitals are physical containers"
Truth: Orbitals are mathematical probability regions
Key: They describe where electrons are likely to be found
"All orbitals are the same size"
Truth: Higher energy orbitals are larger
Example: 3s orbital is larger than 2s orbital
"Orbital shapes are 2D"
Truth: All orbitals exist in three-dimensional space
Key: s orbitals are spheres, p orbitals are 3D dumbbells
"Higher energy always means farther from nucleus"
Truth: Energy depends on both distance and orbital penetration
Example: 4s fills before 3d despite being "4th level"
